Unboxing and Installing CloudEnergy’s 48V 150Ah LiFePO4 Wall Mount Battery
In this review, YouTube reviewer D Mc documents the unboxing and installation of the CloudEnergy 48V 150Ah LiFePO4 Wall Mount Battery. He highlights the battery's features, including its size, weight, and mounting options, and measures the bus bars and discusses the battery's temperature sensors. D Mc also opens the battery cover to observe and test the cell status and wiring structure.

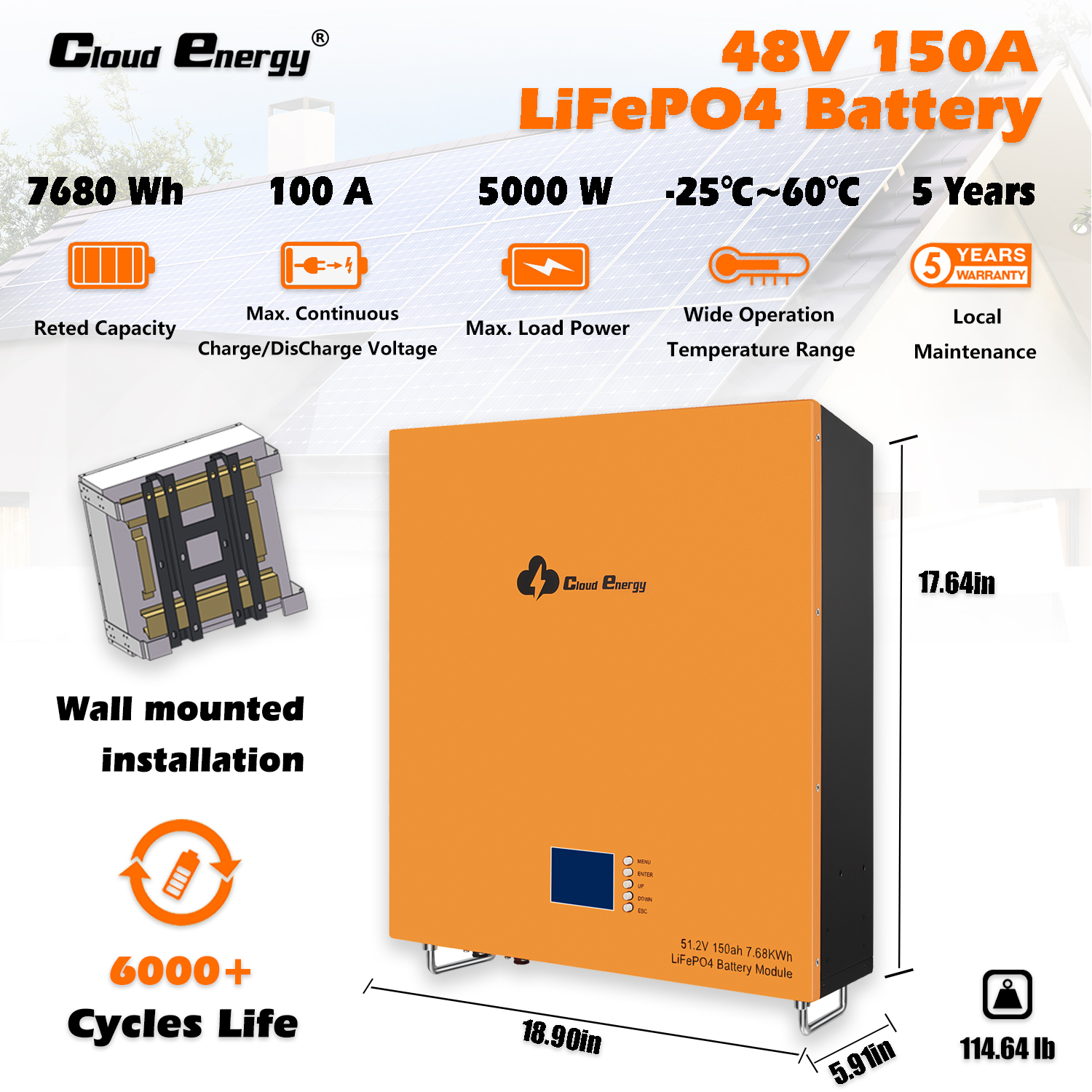

Features of CloudEnergy 48V 150Ah LiFePO4 Wall Mount Battery
- Nominal Voltage: 51.2V
- Nominal Capacity: 150Ah
- Energy: 7680Wh
- Standard Charge Voltage: 58.4V
- Discharge Cut-off Voltage: 40V
- Standard Charge Current: 50A
- Max. Charge Current: 100A
- Max. Constant Discharge Current: 100A
- Peak Discharge Current: 120A @30s
- Dimension: 480*450*160mm (18.89*17.71*6.3in)
- Weight: 58.5kg (128.97lb)
- Cycle Life: 6000+ cycles
- Charge Temperature: 0~60°C
- Discharge Temperature: -20~60°C
- Storage Temperature: 10~45°C
Installation Guide
Follow these steps to install the CloudEnergy 48V 150Ah LiFePO4 Wall Mount Battery:
Unbox the CloudEnergy 48V 150Ah LiFePO4 Wall Mount Battery.- Prepare the battery compartment for installation.
- Install the battery and secure it in place using the mounting options.
- Connect the bus bars and ensure proper wiring.
- Test the battery by running various appliances.
- Ensure everything is functioning correctly and monitor performance.
Cloud Energy Battery Capacity Test
Cloud Energy Battery Capacity Test
Finally uploading the capacity test video I promised many moons ago. A 0.2c discharge rate capacity test should discharge at 20% per hour as shown in this test (aka c2). A 1.0c rate would discharge 100% in one hour. 31amps @51vdc = 1581watts. 150amp hours divided by 30amps = 5hours.
To run your own 0.2c discharge capacity test, take the rated watt hours divided by 5 and use a load very close to that wattage. Example: 12v 100ah battery = 1200 watt hour divided by 5 = 240watt load.
Customer Testimonial
"The CloudEnergy 48V 150Ah LiFePO4 Wall Mount Battery has been incredibly reliable and efficient. The installation was straightforward, and the battery's performance has exceeded my expectations." - YouTube Reviewer D Mc
Frequently Asked Questions
- Q: How long does it take to charge the CloudEnergy 48V 150Ah LiFePO4 Wall Mount Battery?
- A: Typically, it takes about 5-6 hours for a full charge.
- Q: Can I install the LiFePO4 battery myself?
- A: Yes, with the right tools and following our installation guide, you can install it yourself. However, professional installation is recommended for optimal performance.
Upgrade Your Energy Storage Today!
Ready to experience the benefits of CloudEnergy lithium batteries? Visit our product page for more information or to make a purchase: CloudEnergy 48V 150Ah LiFePO4 Wall Mount Battery. For personalized consultations, feel free to contact our sales team.
